Power Worth Searching For

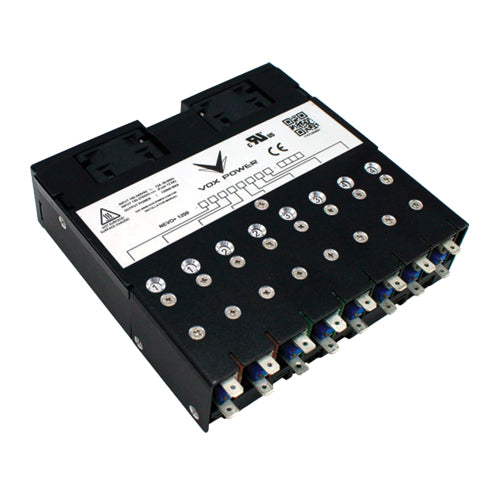

NEVO+1200M
1200W Modular Chassis, Medical, 1200 Watts Input Module, 8 Slots, EmptyManufacturer: Vox Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$503.12
5
$488.32
10
$493.79
25
$476.03
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
# Output Module Slots:
8 Slots
Max Output Power
1200 Watts
Known Country of Origin:
Thailand
Features
Vox Power NEVO+1200M 6x6 medical modular power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Standby power Latched off state, 120Vrms 2.5 Watts
Built-in intelligent fans
Built-in remote On/Off
Low earth leakage current <300µA
No load power consumption: all outputs fitted and disabled/enabled 32/46 Watts
Factory configurable output voltage combinations
Adjustable output voltage
Programmable output voltage and output current
Two built-in 5V/1A & one 5V/0.5A auxiliary outputs on chassis
5Vdc/10mA local module bias supply
Remote sense function
Power good signal
Peak power
Optional low noise (L Version), Optional 300W Dual Slot module
