ECL30UD02-T
15V,-15V, Dual Output Power Supply, Open FrameManufacturer: XP Power
View Data Sheet
In Stock: 15 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$74.53
5
$72.29
10
$70.06
25
$67.07
100
$62.60
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
15Vdc
Output #1 Max Current:
1 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
1 Amps
Max Power:
30 Watts
Known Country of Origin:
China
Features

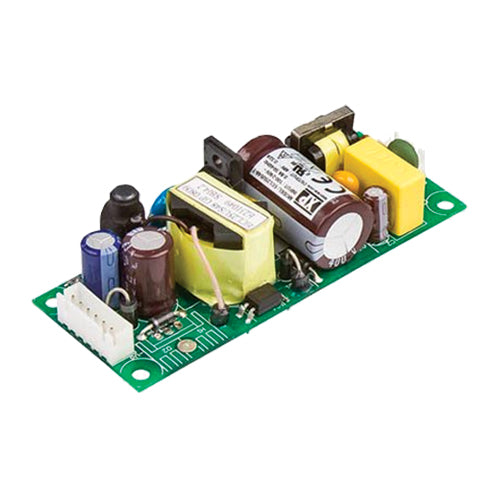

XP Power ECL30UD02-T open frame power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Dual output models
Class II
Peak power up to 130% for <30 sec
Reinforced I/O isolation 3000Vac
No load power consumption <0.3W
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
