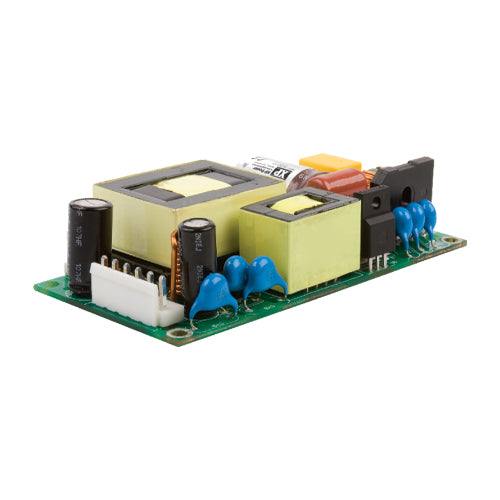

ECP180PS28
28Vdc 6.43A, Open Frame Power Supply, Medical & ITE Certifications, 28 Volts 6.43 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$132.52
5
$128.54
10
$124.56
25
$119.27
100
$111.31
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
28Vdc
Output Max Current:
6.43 Amps
Max Power:
180 Watts
Known Country of Origin:
Taiwan
Features
XP Power ECP180PS28 2x4 inches open frame medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Built-in PFC
Class I and class II prepared
Low earth leakage current 230µA max
No load power consumption <0.5 Watts
High efficiency
Operation up to 5000m altitude
High power density: 22W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
