EPL150PS24
24Vdc 6.25A, Open Frame Power Supply, Medical & ITE Certifications, 24 Volts 6.25 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$94.57
5
$91.74
10
$88.90
25
$85.12
100
$79.44
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
6.25 Amps
Max Power:
150 Watts
Known Country of Origin:
Taiwan
Features

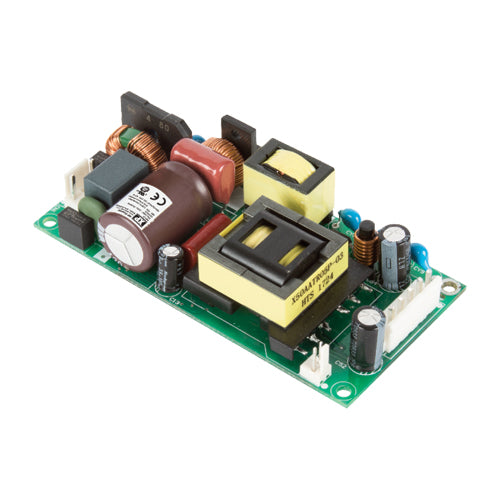

XP Power EPL150PS24 2x4 inches open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ES 60601-1
Suitable for BF application
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Class I and class II prepared
Low earth leakage current 230µA max
No load power consumption <0.5 Watts
High efficiency
Operation up to 5000m altitude
High power density: 18.9W/cubic inch
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
