CB101N

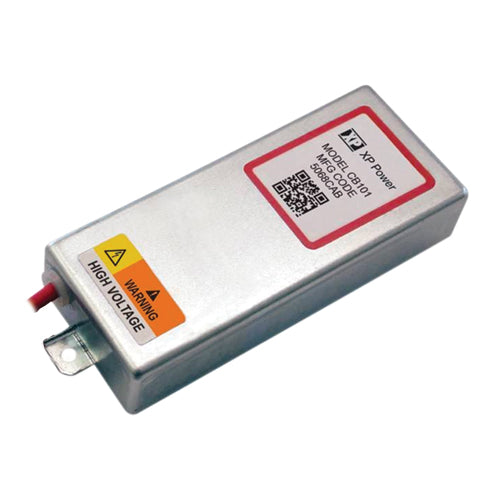

10000Vdc 0.0001A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
11.5~16Vdc
Output Voltage:
10000Vdc
Output Max Current:
0.0001 Amps
Max Power:
1 Watts
Known Country of Origin:
Vietnam
Features
XP Power CB101N high voltage DC/DC converter
11.5~16Vdc input range
Operating temperature range: -10~+60°C
Programmable Output (0 to 100%)
Current and voltage monitoring outputs
Voltage reference output
Fully regulated output
Protections: overvoltage / thermal shutdown
XP Power 3 year warranty
