Power Worth Searching For
HRC0524S6K0P
6000Vdc 0.00083A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
22~30Vdc
Output Voltage:
6000Vdc
Output Max Current:
0.00083 Amps
Max Power:
5 Watts
Known Country of Origin:
Vietnam
Features

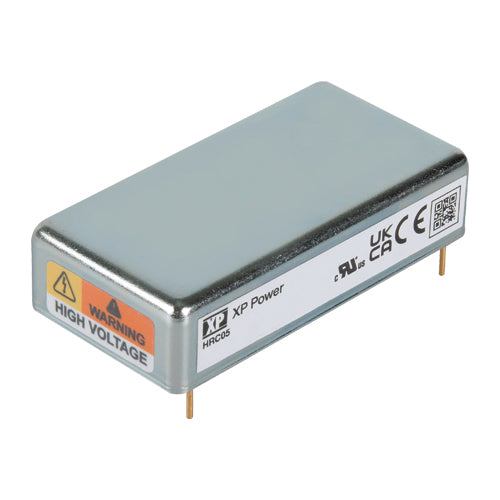

XP Power HRC0524S6K0P DC/HVDC converter
22~30Vdc input range
Operating temperature range: -40~+70°C
Safety certification: UL/IEC/EN 62368-1 UL/IEC/EN 61010-1
No minimum load required
Remote On/Off
5Vdc reference output
Fully regulated output
Adjustable output voltage
Protections: short circuit / overload / undervoltage-lockout / over temperature / input overvoltage / over programming
XP Power 3 year warranty
