Q40-5
4000Vdc 0.00013A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
0.7~5Vdc
Output Voltage:
4000Vdc
Output Max Current:
0.00013 Amps
Max Power:
0.5 Watts
Known Country of Origin:
Vietnam
Features

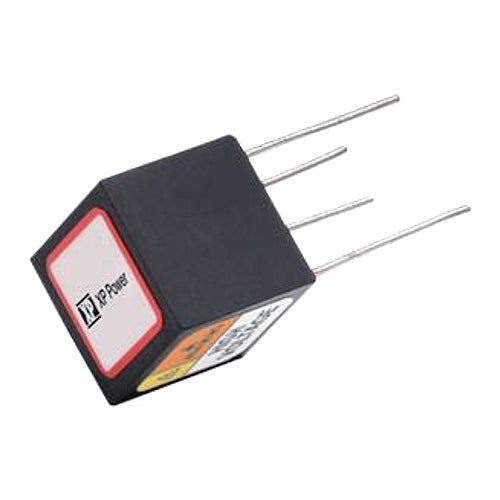

XP Power Q40-5 DC/HVDC converter
0.7~24Vdc input range
I/O isolation: <±500Vdc (bias on output return)
Operating temperature range: -10~+75°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
No minimum load required
Unregulated output
Protections: short circuit
XP Power 3 year warranty
