RDF15072S12

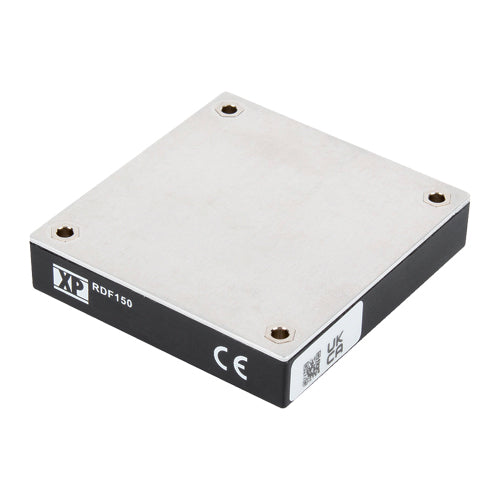

12Vdc 12.5A, DC/DC Converter, Half Brick, 12:1 InputManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$228.89
5
$222.02
10
$215.16
25
$206.00
100
$192.26
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
14~160Vdc
Output Voltage:
12Vdc
Output Max Current:
12.5 Amps
Max Power:
150 Watts
Known Country of Origin:
Taiwan
Features
1/2 brick DC/DC converter
Ultra-wide 12:1 input range (14~160Vdc)
Operating temperature range: -40~+100°C
Industrial safety certification: UL 62368-1
MIL-STD-810F
Compliance to EN 61373 for shock and vibratio
Compliance to EN 50155 railway standard
I/O isolation: 3000Vac
Remote On/Off
Remote sense function
Output voltage trim function
Fully regulated output
Operation up to 5000m altitude
Protections: short circuit / overload / overvoltage / undervoltage-lockout
XP Power 3 year warranty
