PIP-11772

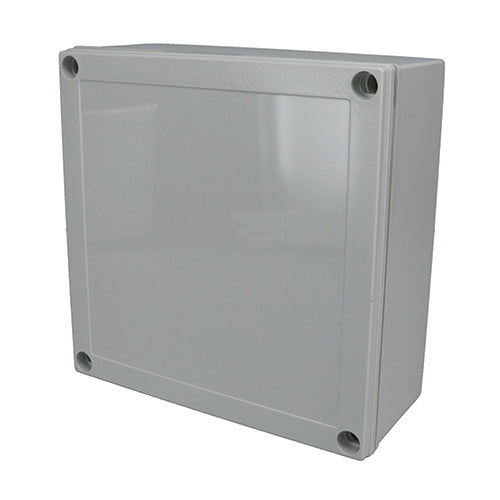

Fiberglass Box with Captive Screws PIP-11772, PC+10% Fiberglass Box with Captive Screws (7.1 X 7.1 X 3 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
7.09x7.09x2.95 inches
Internal Dimensions:
5.91x5.91x2.43 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
Taiwan
Features
Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Cover made of Gray Polycarbonate (PC)
High impact resistance
IP-67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
UL508 / UL tested for type 4X, listed #E343339.
RoHs compliant
Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating.
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
Nonmetallic captive screws without the risk of stripping.
Good chemical resistance
Continuous gasket
