PIP-11774-C

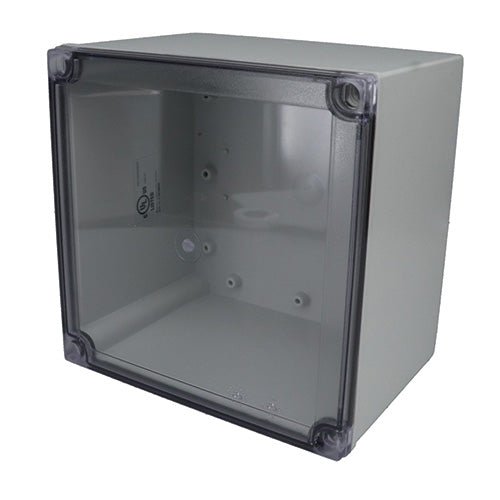

Fiberglass Box with Captive Screws and Clear Cover PIP-11774-C, PC+10% Fiberglass Box with Captive Screws and Clear Cover (7.1 X 7.1 X 4.9 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
7.09x7.09x4.92 inches
Internal Dimensions:
5.91x5.91x4.4 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
Taiwan
Features
Body made of gray polycarbonate plastic 10% glass-fiber filled.
Cover made of clear polycarbonate plastic.
High impact resistance.
IP 67 rating to keep out dust and water in extreme conditions (meets NEMA Type 6). UL508 / UL tested for type 4X, listed #E343339.
RoHs compliant.
Non-chlorinated and non-brominated flame retardant with UL-94 V0 rating.
Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C.
Nonmetallic captive screws without the risk of stripping.
Good chemical resistance.
Continuous gasket.
PIP-11774-C
Fiberglass Box with Captive Screws and Clear Cover PIP-11774-C, PC+10% Fiberglass Box with Captive Screws and Clear Cover (7.1 X 7.1 X 4.9 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
7.09x7.09x4.92 inches
Internal Dimensions:
5.91x5.91x4.4 inches
Ratings:
IP65, 67, 68, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
Taiwan
Features
Body made of gray polycarbonate plastic 10% glass-fiber filled.
Cover made of clear polycarbonate plastic.
High impact resistance.
IP 67 rating to keep out dust and water in extreme conditions (meets NEMA Type 6). UL508 / UL tested for type 4X, listed #E343339.
RoHs compliant.
Non-chlorinated and non-brominated flame retardant with UL-94 V0 rating.
Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C.
Nonmetallic captive screws without the risk of stripping.
Good chemical resistance.
Continuous gasket.
