PTQ-11052-C

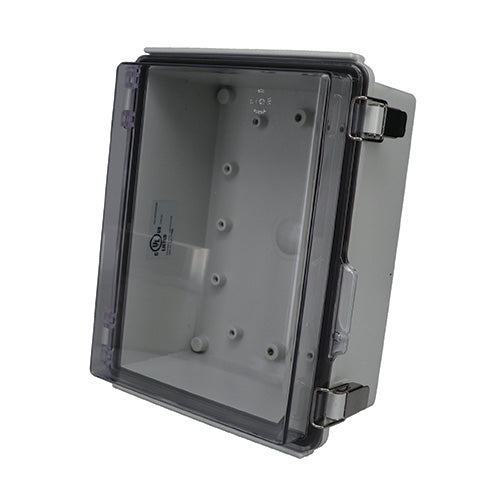

Fiberglass Box with Stainless Steel Latch PTQ-11052-C, PC+10% Fiberglass Box with Stainless Steel Latch (6.7 X 8.7 X 4.3 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
6.69x8.66x4.33 inches
Internal Dimensions:
6.57x8.54x4.21 inches
Ratings:
IP67, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
South Korea
Features
Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Hinged Cover made of Clear Polycarbonate (PC)
High impact resistance IK08
Stainless steel latch
IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
UL508 / UL tested for type 4X, listed #E194432.
RoHs compliant
Non-chlorinated & non-brominated flame retardant. With clear cover UL-94 V0 and body UL-94 V0 and UL-94 5VA rating
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C
-40c to +95c extended exposure condition
Good chemical resistance
Continuous gasket
PTQ-11052-C
Fiberglass Box with Stainless Steel Latch PTQ-11052-C, PC+10% Fiberglass Box with Stainless Steel Latch (6.7 X 8.7 X 4.3 In)Manufacturer: BUD Industries
View Data Sheet
Specifications
External Dimensions:
6.69x8.66x4.33 inches
Internal Dimensions:
6.57x8.54x4.21 inches
Ratings:
IP67, NEMA 1, 2, 4, 4X, 6
Material:
Fiberglass
Color:
Light Gray
Known Country of Origin:
South Korea
Features
Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Hinged Cover made of Clear Polycarbonate (PC)
High impact resistance IK08
Stainless steel latch
IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
UL508 / UL tested for type 4X, listed #E194432.
RoHs compliant
Non-chlorinated & non-brominated flame retardant. With clear cover UL-94 V0 and body UL-94 V0 and UL-94 5VA rating
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C
-40c to +95c extended exposure condition
Good chemical resistance
Continuous gasket
