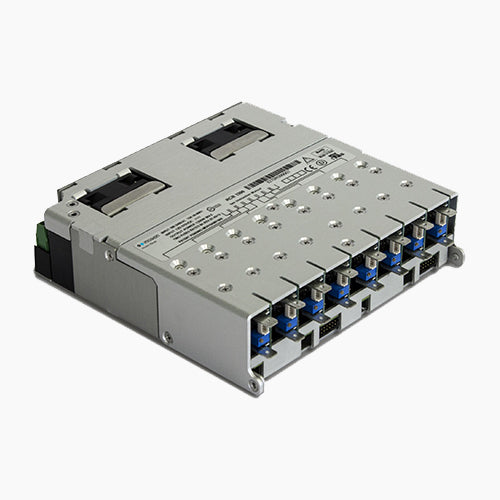

Inission Power MCB1200
1200W Medical Modular Chassis
Power Worth Searching For
| Input Module # | Max Output Power | # of Available Output Slots |
| MCB1200 | 1200W | 8 |
| Output Module Code |
Nominal Voltage | Max Current | Voltage Adjustment |
| A | 5Vdc | 25A | 1.5~7.5Vdc |
| B | 12Vdc | 12.5A | 4.5~15Vdc |
| C | 24Vdc | 6.25A | 9~30Vdc |
| D | 48Vdc | 3.125A | 18~58Vdc |
| W | 2x12Vdc (Dual Output) |
5A | 3.3~15Vdc |
| Z | 2x24Vdc (Dual Output) |
3.125A | 15~38Vdc |
| 0 | Unused Slots | ||
