MDS-005AAS05 BR

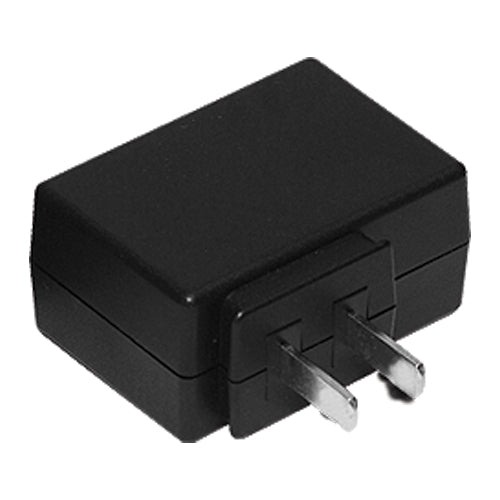

5Vdc 1A, Wall Plug-In Adaptor Medical US Type 5 Volts 1 AmpManufacturer: Delta
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
5Vdc
Output Max Current:
1 Amps
Max Power:
5 Watts
Known Country of Origin:
China
Features
Medical wall plug-in power adaptor
AC input range: 90~264Vac
Operating temperature range: 0~+40°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC 62368-1, UL/cUL 62368-1 Listed
Class II
IP22
AC plug: 2 pole USA
DC plug type: 1.35 x 3.5 x 9mm center positive
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
