MEP-120A12J BNA

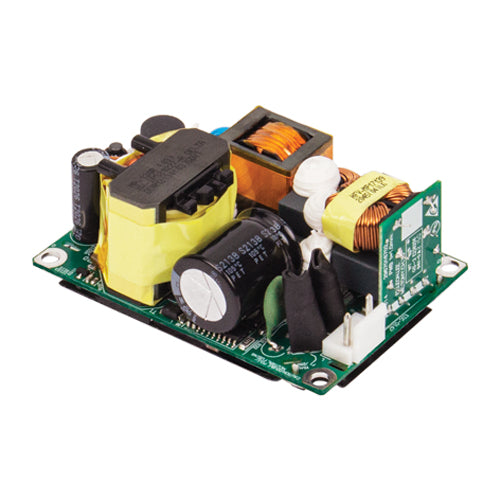

12Vdc 9.5A Medical Power Supply 2x3 Open Frame 12 Volts 9.5 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
9.5 Amps
Max Power:
114 Watts
Known Country of Origin:
China
Features
2x3 inches open frame medical power supply
AC input range: 90~264Vac
Operating temperature range: -30~+70°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, IEC 60950-1
Class II
Built-in PFC
No Load Consumption <0.21W
Operation up to 5000m altitude
Up to 150W peak power for 10 seconds
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
