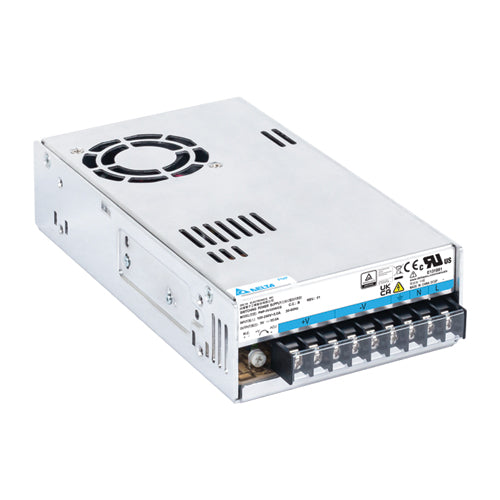

PMF-5V320WCAB
5Vdc 55A Power Supply Enclosed Type w-Fan 5 Volts 55 AmpsManufacturer: Delta
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
5Vdc
Output Max Current:
55 Amps
Max Power:
275 Watts
Known Country of Origin:
China
Features
Enclosed power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 60950-1
SELV
Built-in temperature controlled fan
LED indicator for DC OK
Operation up to 5000m altitude
Leakage current <1mA
Built-in PFC
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 2 year warranty
PMF-5V320WCAB
5Vdc 55A Power Supply Enclosed Type w-Fan 5 Volts 55 AmpsManufacturer: Delta
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
5Vdc
Output Max Current:
55 Amps
Max Power:
275 Watts
Known Country of Origin:
China
Features
Enclosed power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 60950-1
SELV
Built-in temperature controlled fan
LED indicator for DC OK
Operation up to 5000m altitude
Leakage current <1mA
Built-in PFC
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 2 year warranty
