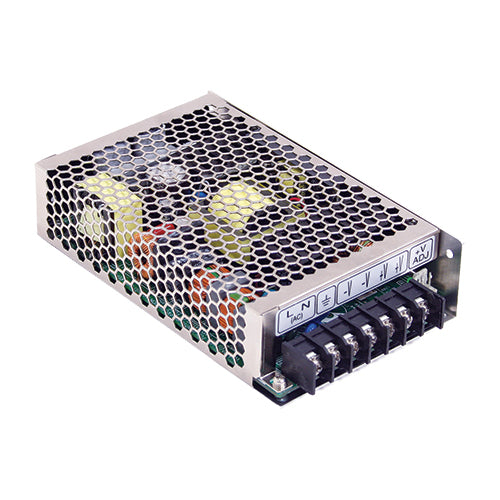

HRP-150-36
36Vdc 4.3A PFC Power SupplyManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
4.3 Amps
Max Power:
154 Watts
Known Country of Origin:
China
Features
AC input range: 85~264Vac
Operating temperature: -40~+70°C
Safety approvals: UL 62368-1 and TUV EN 62368-1
Withstand 300Vac surge input for 5 seconds
Fan-less design, cooling by free air convection
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
LED indicator for power on
Protections: over load / over voltage
MEAN WELL 5 year warranty
