Power Worth Searching For

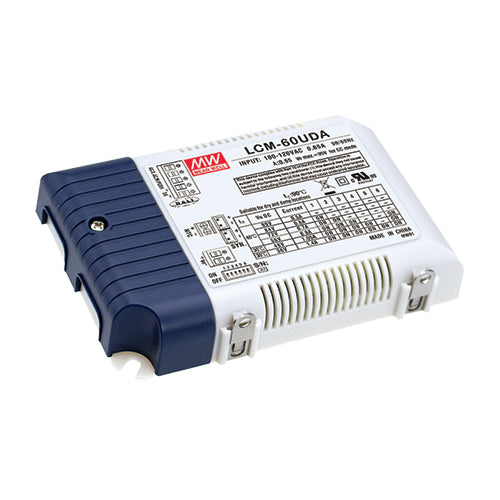

LCM-60UDA
Dimmable Multiple Stage Driver DALI, Select by DIP Switch 90-132 Vac Input RangeManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~132Vac
Selectable Constant Current (default):
700 mA
DC Voltage Range (default):
2~90 Vdc
Max Power:
50 Watts
Known Country of Origin:
China
Features
AC input range: 90~132Vac
Case temperature range: -30~+90°C
Safety standard: UL8750
Plastic housing with class II design
Built-in active PFC function
Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming, synchronization up to 10 units
Protections: short circuit / over voltage / over temperature
MEAN WELL 3 year warranty
