XBG-160-A

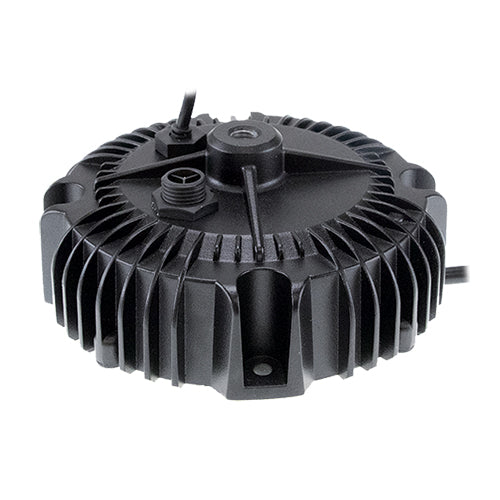

34~56V 3.3A, Constant Power LED Driver Circular Shape, Fixed AC Cable Full Power 70~100% Current, 160 WattsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Constant Current Operating Range:
34~56Vdc
Adjustable Current Range:
2.85~4.1 Amps
Max Power:
159.9 Watts
Known Country of Origin:
China
Features
AC input range: 90~305Vac
Operating case temperature: -40~+90°C (with derating)
Safety approvals: UL8750 Type HL for use in Class I, Division 2 hazardous location
AC input with fixed cable
Built-in active PFC function
IP67 fully potted circular aluminum case
Output constant current level can be adjusted through internal potentiometer
Withstands 5G vibration
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 5 year warranty
