Power Worth Searching For
Specifications
Input Voltage:
90~264Vac
Output Voltage:
18Vdc
Output Max Current:
3.61 Amps
Max Power:
64.98 Watts
Known Country of Origin:
Not specified
Features
65 watt desktop power supply
AC input range: 90~264Vac
Operating temperature: 10~+40°C
Industrial safety certification: IEC 62368-1, cULus 62368-1
Energy Efficiency Level VI
Pass LPS
AC inlet: IEC 320-C14
DC output connector: 2.1 x 5.5 x 9.5mm center positiv
Leakage current ≤3.5mA
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty

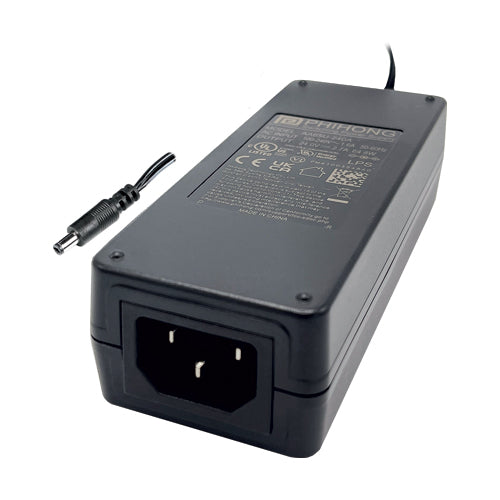

AA65U-180A-R
18Vdc Desktop Adaptor, IEC320-C14Manufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
18Vdc
Output Max Current:
3.61 Amps
Max Power:
64.98 Watts
Known Country of Origin:
Not specified
Features
65 watt desktop power supply
AC input range: 90~264Vac
Operating temperature: 10~+40°C
Industrial safety certification: IEC 62368-1, cULus 62368-1
Energy Efficiency Level VI
Pass LPS
AC inlet: IEC 320-C14
DC output connector: 2.1 x 5.5 x 9.5mm center positiv
Leakage current ≤3.5mA
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
Get Pricing and Lead Time for AA65U-180A-R
