PMA10R-050AW-R

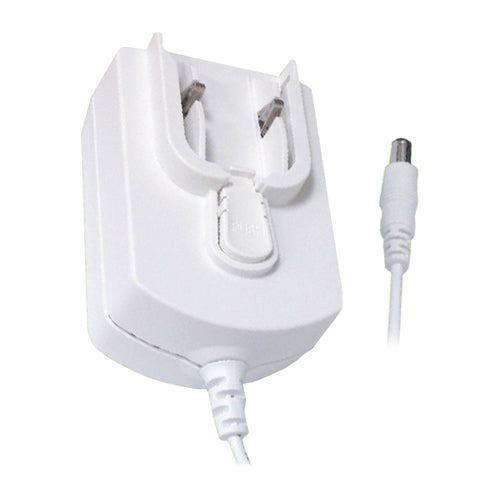

10W Medical Wall Plug-In Interchangeable AC Plugs 2xMOPP, BF RatedManufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
5Vdc
Output Max Current:
2 Amps
Max Power:
10 Watts
Known Country of Origin:
Not specified
Features
Phihong PMA10R-050AW-R 10W medical wall plug-in adaptor with interchangeable AC plugs
AC input range: 90~264Vac
Operating temperature: +5~+40°C
Safety approvals: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP, BF rated
Low leakage current <100µA
Class II
Pass LPS
Efficiency Level VI
DC output connector: 2.1 x 5.5 x 10mm
Protections: over voltage / over current / over temperature / short circuit
Phihong 1 year warranty
