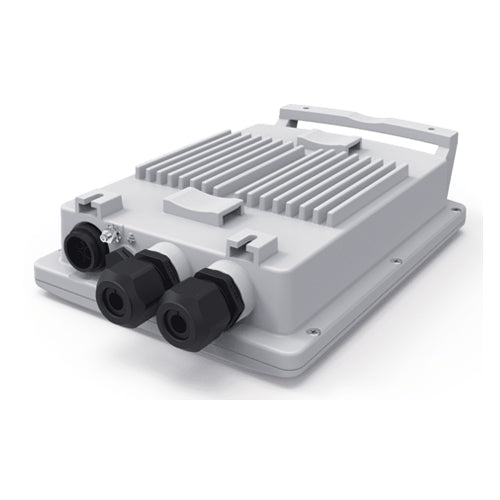

POEO75U-1BT-X-R
Power Over Ethernet Single Port Injector, 10G Data Speed, IP67 Enclosed CaseManufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Max Current:
1.6 Amps
Max Power:
90 Watts
Known Country of Origin:
Not specified
Features
Enclosed case, power over ethernet single port injector 10G data speed
AC input range: 90~264Vac
Operating temperature range: -40~+65°C
Industrial safety certifications: cUL/UL 62368-1 listed, IEC 62368-1
IP67 rated durable aluminium enclosure
Fully compliant with IEEE802.3bt standard
10 gigabit compatible
Input connector: 3 pin twist lock
Output PoE connector: RJ45 with cable glands
Flat mount or pole mount application options
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
POEO75U-1BT-X-R
Power Over Ethernet Single Port Injector, 10G Data Speed, IP67 Enclosed CaseManufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Max Current:
1.6 Amps
Max Power:
90 Watts
Known Country of Origin:
Not specified
Features
Enclosed case, power over ethernet single port injector 10G data speed
AC input range: 90~264Vac
Operating temperature range: -40~+65°C
Industrial safety certifications: cUL/UL 62368-1 listed, IEC 62368-1
IP67 rated durable aluminium enclosure
Fully compliant with IEEE802.3bt standard
10 gigabit compatible
Input connector: 3 pin twist lock
Output PoE connector: RJ45 with cable glands
Flat mount or pole mount application options
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
