Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Max Current:
1.17 Amps
Max Power:
65 Watts
Known Country of Origin:
China
Features

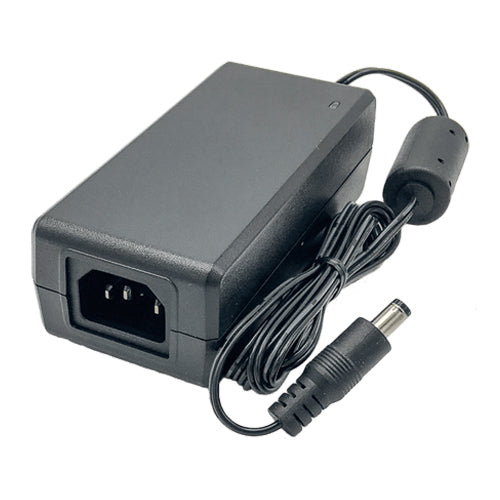

Phihong PPL65U-560 65W desktop external adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
Safety approvals: UL/IEC 62368-1
Efficiency Level VI
AC input: IEC60320-C14
DC output connector: 2.1 x 5.5 x 10mm
LED indicator for power on
Protections: over voltage / over current / short circuit
Phihong 1 year warranty
PPL65U-560
56Vdc Desktop Adaptor AC Input: IEC60320-C14Manufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Max Current:
1.17 Amps
Max Power:
65 Watts
Known Country of Origin:
China
Features
Phihong PPL65U-560 65W desktop external adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
Safety approvals: UL/IEC 62368-1
Efficiency Level VI
AC input: IEC60320-C14
DC output connector: 2.1 x 5.5 x 10mm
LED indicator for power on
Protections: over voltage / over current / short circuit
Phihong 1 year warranty
Get Pricing and Lead Time for PPL65U-560
Tell us the quantity you need and we will come back with minimum order quantity, factory lead time and pricing.
Your quote will include the minimum order quantity, the factory lead time, and pricing at the volumes you ask for.
Prefer to talk it through? Call 1-888-612-9514.
