Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Max Current:
1.17 Amps
Max Power:
65 Watts
Known Country of Origin:
Not specified
Features

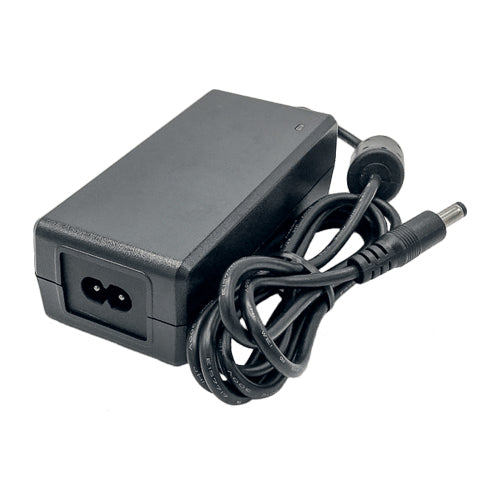

Phihong PPL65W-560 65W desktop external adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
Safety approvals: UL/IEC 62368-1
Efficiency Level VI
AC input: IEC60320-C8
DC output connector: 2.1 x 5.5 x 10mm
LED indicator for power on
Protections: over voltage / over current / short circuit
Phihong 1 year warranty
PPL65W-560
56Vdc Desktop Adaptor AC Input: IEC60320-C8Manufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Max Current:
1.17 Amps
Max Power:
65 Watts
Known Country of Origin:
Not specified
Features
Phihong PPL65W-560 65W desktop external adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
Safety approvals: UL/IEC 62368-1
Efficiency Level VI
AC input: IEC60320-C8
DC output connector: 2.1 x 5.5 x 10mm
LED indicator for power on
Protections: over voltage / over current / short circuit
Phihong 1 year warranty
