Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.88 Amps
Max Power:
90 Watts
Known Country of Origin:
China
Features

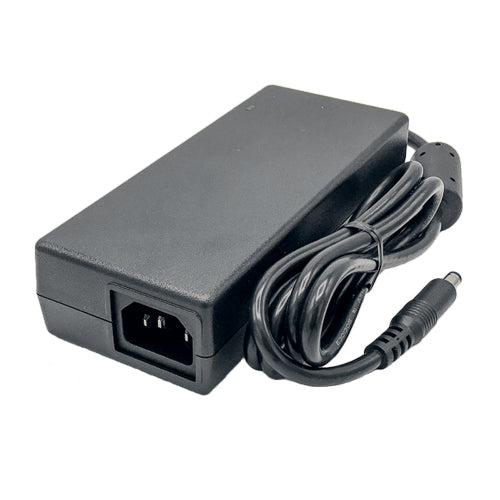

Phihong PPL90U-480 90W desktop external adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
Safety approvals: UL/IEC 62368-1
Efficiency Level VI
AC input: IEC60320-C14
DC output connector: 2.1 x 5.5 x 10mm
LED indicator for power on
Protections: over voltage / over current / short circuit
Phihong 1 year warranty
PPL90U-480
48Vdc Desktop Adaptor AC Input: IEC60320-C14Manufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.88 Amps
Max Power:
90 Watts
Known Country of Origin:
China
Features
Phihong PPL90U-480 90W desktop external adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
Safety approvals: UL/IEC 62368-1
Efficiency Level VI
AC input: IEC60320-C14
DC output connector: 2.1 x 5.5 x 10mm
LED indicator for power on
Protections: over voltage / over current / short circuit
Phihong 1 year warranty
