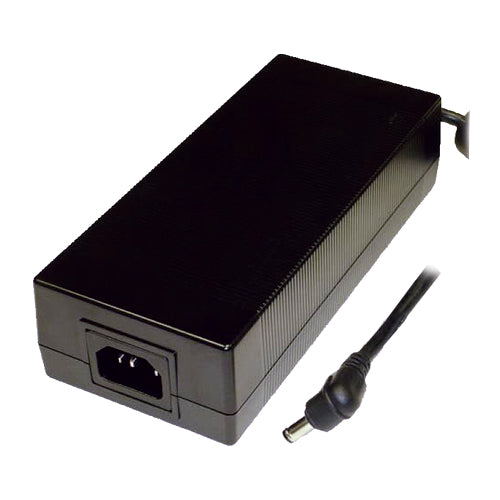

PSA120U-120L6
12 Volt Desk Top Power Supply Energy Efficiency Level VIManufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
9 Amps
Max Power:
108 Watts
Known Country of Origin:
Not specified
Features
Phihong PSA120U-120L6 efficiency level VI desktop adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
Safety approval: IEC 60950-1, UL 60950-1, IEC 62368-1, UL 62368-1
Leakage current: <250µA @250Vac/50Hz
AC inlet: IEC320-C14
Dimensions: 152x73x37mm
DC output connector: 4 pin mini DIN
Standard protections: over current / short circuit / over voltage / over temperature
Phihong 1 year warranty
