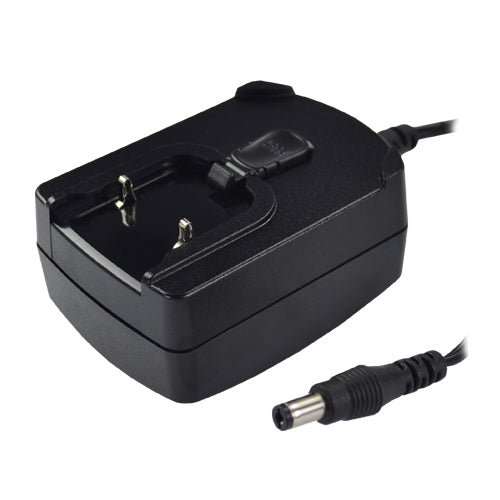

PSAC12R-075
7.5V Wall Plug-In Adapter Interchangeable AC Plug Energy Efficiency Level VIManufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
7.5Vdc
Output Max Current:
1.6 Amps
Max Power:
12 Watts
Known Country of Origin:
Not specified
Features
Phihong PSAC12R-075 energy efficiency VI wall plug-in adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
DC output connector: 2.1 x 5.5 x 10mm center positive
Double insulated
Limited Power Source (LPS)
Leakage Current: 0.25mA max
No load power consumption: 100mW max @115V
Interchangeable AC plugs (sold separately)
Protections: over current / short circuit / over voltage
Phihong 1 year warranty
PSAC12R-075
7.5V Wall Plug-In Adapter Interchangeable AC Plug Energy Efficiency Level VIManufacturer: Phihong
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
7.5Vdc
Output Max Current:
1.6 Amps
Max Power:
12 Watts
Known Country of Origin:
Not specified
Features
Phihong PSAC12R-075 energy efficiency VI wall plug-in adaptor
AC input range: 90~264Vac
Operating temperature: 0~+40°C
DC output connector: 2.1 x 5.5 x 10mm center positive
Double insulated
Limited Power Source (LPS)
Leakage Current: 0.25mA max
No load power consumption: 100mW max @115V
Interchangeable AC plugs (sold separately)
Protections: over current / short circuit / over voltage
Phihong 1 year warranty
