PYA36T240150

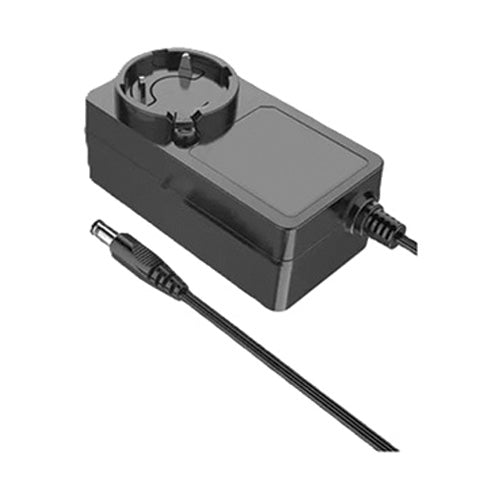

24Vdc Wall Plug-In Adapter Interchangeable AC Plug Energy Efficiency Level VIManufacturer: Phihong
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.5 Amps
Max Power:
36 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Operating temperature: 0°C~+40°C
Leakage current: 0.25mA max
US DoE Level VI Efficiency Compliance
DC output connector: 2.1x5.5mm center positive barrel
No Load power consumption < 0.075W
Protections: over current / short circuit / over voltage
Interchangeable US/EU/UK/AU Plugs (sold separately)
cULus 62368-1 Listed
Phihong 1 year warranty
Class II
