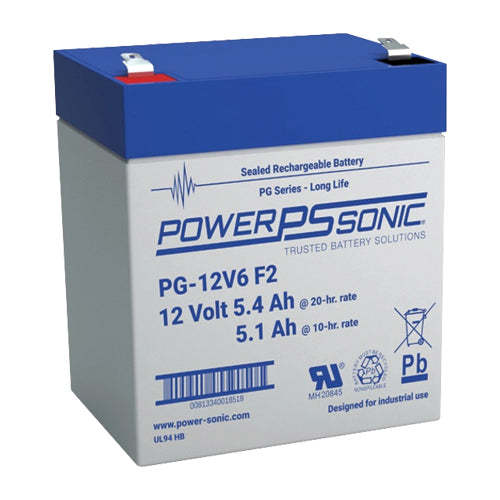

PG-12V6 F2

12Vdc 5.4Ah, Sealed Lead Acid Battery, Long Life, SLA Battery

Manufacturer: Power Sonic

View Data Sheet

End of Life

This part has been discontinued by the manufacturer and is no longer available from TRC Electronics. Full specifications and documentation remain below for reference.

Find a Replacement

Specifications

Nominal Voltage:

12V

Battery Capacity:

5.8Ah

Weight:

3.96 lbs

Case Material:

ABS

Known Country of Origin:

Vietnam

Features

12V sealed lead acid battery with F2 terminal

Nominal capacity: 20 hr (0.270A to 10.80 volts): 5.40Ah

Nominal capacity: 10 hr (0.511A to 10.80 volts): 5.11Ah

Charging temperature range: -15~+50°C

Discharging temperature range: -20~+60°C

Safety approvals: UL recognized

Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified

Rugged impact resistant ABS case and cover

Dimensions: 3.54 x 2.76 x 4.21 inches

Weight: 3.96 lbs

Case material: ABS

Power Sonic 2.5 year warranty
