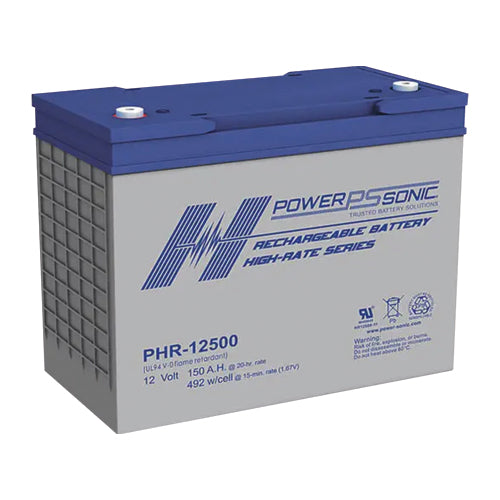

PHR-12500 M6 FR

12Vdc 150Ah, Sealed Lead Acid Battery, SLA Battery

Manufacturer: Power Sonic

View Data Sheet

End of Life

This part has been discontinued by the manufacturer and is no longer available from TRC Electronics. Full specifications and documentation remain below for reference.

Find a Replacement

Specifications

Nominal Voltage:

12V

Battery Capacity:

150Ah

Weight:

92.6 lbs

Case Material:

ABS

Known Country of Origin:

Not specified

Features

12V high rate VRLA sealed lead acid battery with M6 front terminal

Nominal capacity: 20 hr (7.5A to 10.80 volts): 150.0Ah

Nominal capacity: 10 hr (14.3A to 10.50 volts): 143.0Ah

Charging temperature range: -15~+50°C

Discharging temperature range: -20~+60°C

Safety approvals: UL recognized

Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified

Valve regulated, maintenance free spill proof construction

Dimensions: 13.19 x 6.77 x 10.94 inches

Weight: 92.6 lbs

Case material: ABS plastic rated to UL94:V-0

Power Sonic 2.5 year warranty

PHR-12500 M6 FR

PHR-12500 M6 FR

12Vdc 150Ah, Sealed Lead Acid Battery, SLA Battery

Manufacturer: Power Sonic

View Data Sheet

Specifications

Nominal Voltage:

12V

Battery Capacity:

150Ah

Weight:

92.6 lbs

Case Material:

ABS

Known Country of Origin:

Not specified

Features

12V high rate VRLA sealed lead acid battery with M6 front terminal

Nominal capacity: 20 hr (7.5A to 10.80 volts): 150.0Ah

Nominal capacity: 10 hr (14.3A to 10.50 volts): 143.0Ah

Charging temperature range: -15~+50°C

Discharging temperature range: -20~+60°C

Safety approvals: UL recognized

Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified

Valve regulated, maintenance free spill proof construction

Dimensions: 13.19 x 6.77 x 10.94 inches

Weight: 92.6 lbs

Case material: ABS plastic rated to UL94:V-0

Power Sonic 2.5 year warranty
