Specifications
Input Voltage:
4.5~12Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
0.2 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
-0.2 Amps
Max Power:
6 Watts
Known Country of Origin:
Not specified
Features
DIP-16 metal package DC/DC converter
Wide 2:1 input range
Operating temperature range: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Input filter meets EN 55032 class A
I/O isolation: 1500Vdc
No minimum load required
Fully regulated output
Withstands 5G vibration
Under voltage lock-out circuit
Protections: short circuit (continuous, automatic recovery)
TRACO Power 3 year warranty

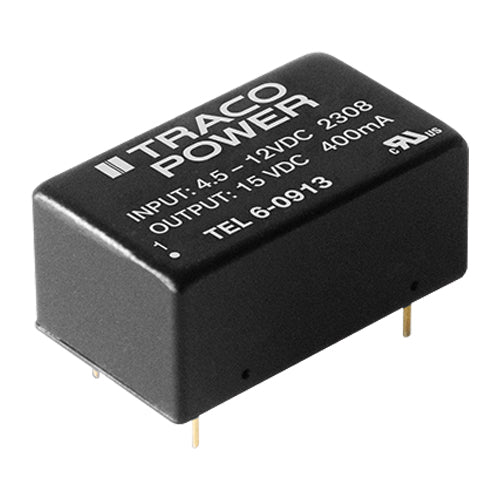

TEL 6-0923
DC/DC Converter, DIP Metal Package, 2:1 InputManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
4.5~12Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
0.2 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
-0.2 Amps
Max Power:
6 Watts
Known Country of Origin:
Not specified
Features
DIP-16 metal package DC/DC converter
Wide 2:1 input range
Operating temperature range: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Input filter meets EN 55032 class A
I/O isolation: 1500Vdc
No minimum load required
Fully regulated output
Withstands 5G vibration
Under voltage lock-out circuit
Protections: short circuit (continuous, automatic recovery)
TRACO Power 3 year warranty
