THN 20-4812
12Vdc 1.67A, DC/DC Converter 1x1 Inch Wide 2:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
36~75Vdc
Output Voltage:
12Vdc
Output Max Current:
1.67 Amps
Max Power:
20.04 Watts
Known Country of Origin:
Taiwan
Features

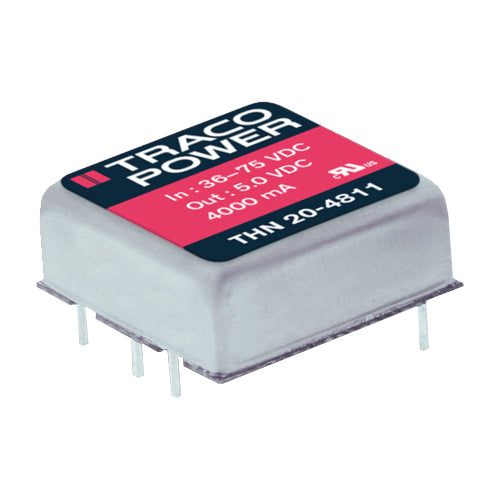

TRACO Power THN 20-4812 compact 1x1 encapsulated on board DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -40~+75°C (up to +75°C with optional heat sink)
Very high efficiency
Output voltage adjustable
No minimum load required
I/O isolation 1500Vdc
Input filter to meet EN 55022 class A without external components
Shielded metal case with insulated baseplate
Remote On/Off
Protections: short circuit / over voltage
TRACO Power 3 year warranty
