Power Worth Searching For
TMR 0523

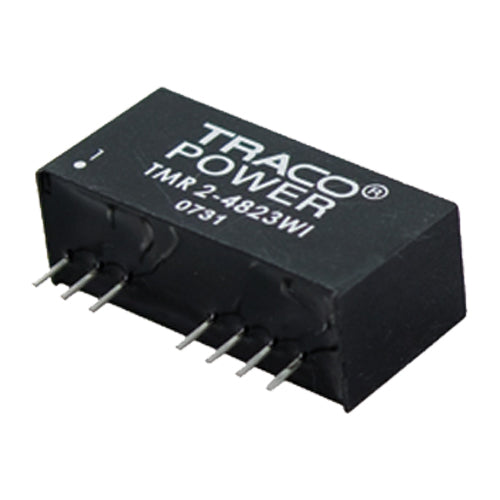

Dual O/P, DC/DC Converter SIP-8 Package Wide 2:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$20.24
10
$16.29
25
$16.06
100
$13.42
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
4.5~9Vdc
Output Voltage #1:
15Vdc
Output #1 Max Current:
0.065 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
0.065 Amps
Max Power:
2 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TMR 0523 compact SIP-8 DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -40~+85°C
I/O isolation 1500Vdc
High efficiency
Excellent load and line regulation
Indefinite short circuit protection
Remote On/Off
TRACO Power 3 year warranty
