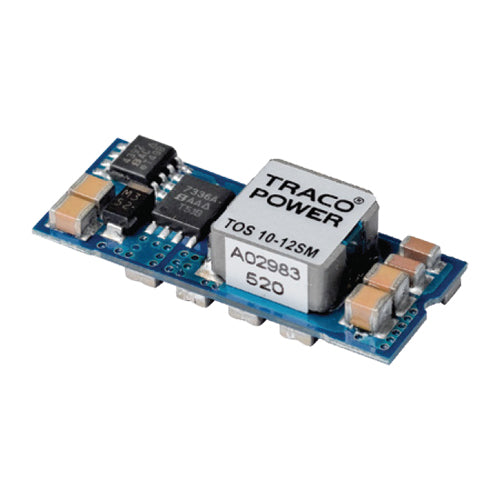

TOS 10-12SM
0.75~5V 10A, DC-DC Converter SMT Mounting POL ConverterManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
8.3~14Vdc
Output Current:
10 Amps
Output Voltage:
0.75~5 Vdc
Known Country of Origin:
Not specified
Features
TRACO Power TOS 10-12SM ultra-compact, low profile surface-mount DC/DC Converter
Wide input voltage ranges
Operating temperature: -40~+85°C
Cost efficient open frame design
SMT package, fully DOSA compatible
Output voltages trim from 0.75Vdc~5Vdc
Delivers up to 30 A with minimal derating
Fast transient response
High efficiency
Remote On/Off
Protections: Short circuit / over load / over voltage
TRACO Power 3 year warranty
