TRN 3-4822

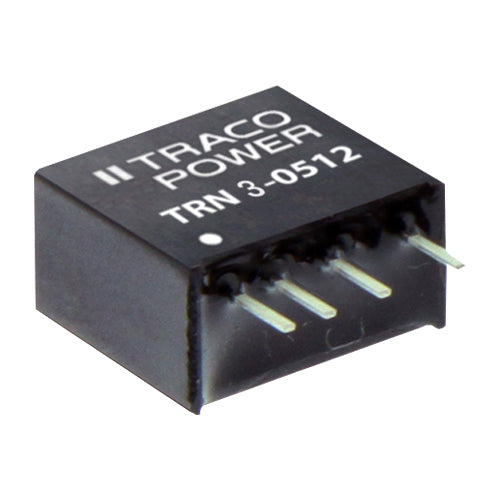

Dual O/P, DC/DC Converter Wide 2:1 Input Voltage Range SIP PackageManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
Factory Stock: 60 i If factory stock is available, we can typically ship that additional stock from the factory to you within two weeks. Contact us to confirm timing for your quantity.
Quantity
Unit Price
1
$24.74
10
$22.12
25
$21.83
100
$17.89
Click for Quote for higher qty discounts
Specifications
Input Voltage:
36~75Vdc
Output Voltage #1:
5Vdc
Output #1 Max Current:
0.3 Amps
Output Voltage #2:
-5Vdc
Output #2 Max Current:
-0.3 Amps
Max Power:
3 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TRN 3-4822 compact SIP package DC/DC converter
Wide 2:1 input voltage range
Operating temperature range: -40~+85°C
Safety approvals: UL 60950-1 & IEC/EN 60950-1
I/O isolation 1,600Vdc
Fully regulated outputs
Protection: short circuit
TRACO Power 3 year warranty
