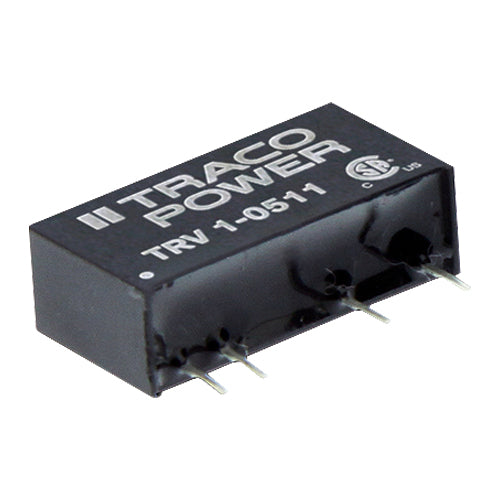

TRV 1-0511M
5Vdc 0.2A, DC/DC Converter, SIP-9 Medical/Industrial Semi-regulatedManufacturer: TRACO Power
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$14.60
10
$12.49
25
$12.32
100
$11.04
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage:
5Vdc
Output Max Current:
0.2 Amps
Max Power:
1 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TRV 1-0511M compact SIP-9 medical DC/DC converter
Input voltage range: ±10%
Operating temperature range: -40~+95°C
Medical safety certification: ANSI/AAMI ES/IEC/EN 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
I/O isolation: 5000Vac
MIL-STD-810F
Low leakage current ≤2µA
Operation up to 5000m altitude
Protections: short circuit
TRACO Power 5 year warranty
TRV 1-0511M
5Vdc 0.2A, DC/DC Converter, SIP-9 Medical/Industrial Semi-regulatedManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage:
5Vdc
Output Max Current:
0.2 Amps
Max Power:
1 Watts
Known Country of Origin:
Taiwan
Features
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$14.60
10
$12.49
25
$12.32
100
$11.04
REQUEST a QUOTE for higher qty discounts
