TRV 1-2413M
15Vdc 0.067A, DC/DC Converter, SIP-9 Medical/Industrial Semi-regulatedManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
Factory Stock: 270 i If factory stock is available, we can typically ship that additional stock from the factory to you within two weeks. Contact us to confirm timing for your quantity.
Quantity
Unit Price
1
$15.86
10
$13.55
25
$13.37
100
$11.98
Click for Quote for higher qty discounts
Specifications
Input Voltage:
19.2~28.8Vdc
Output Voltage:
15Vdc
Output Max Current:
0.067 Amps
Max Power:
1 Watts
Known Country of Origin:
Taiwan
Features

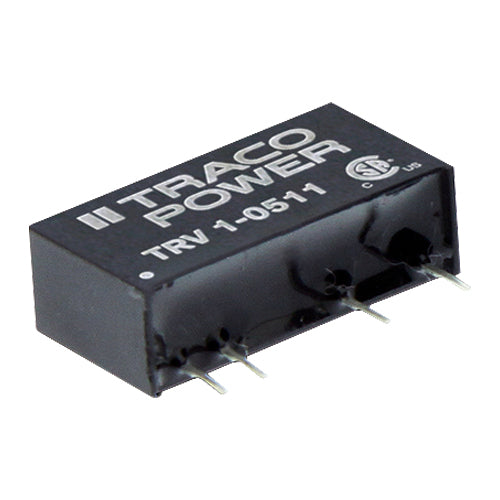

TRACO Power TRV 1-2413M compact SIP-9 medical DC/DC converter
Input voltage range: ±10%
Operating temperature range: -40~+95°C
Medical safety certification: ANSI/AAMI ES/IEC/EN 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
I/O isolation: 5000Vac
MIL-STD-810F
Low leakage current ≤2µA
Operation up to 5000m altitude
Protections: short circuit
TRACO Power 5 year warranty
