Power Worth Searching For
TSR 0.5-2465

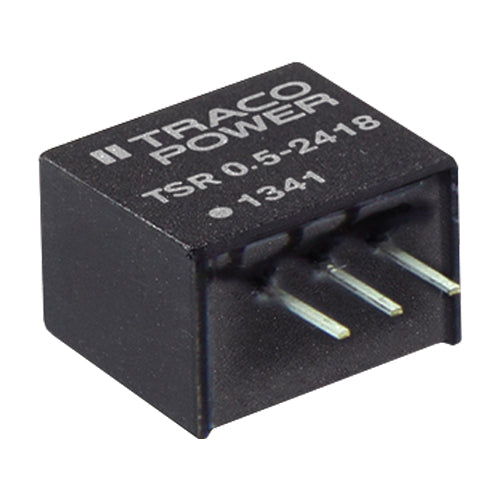

6.5Vdc 0.5A, Switching Regulator Non-Isolated SIP PackageManufacturer: TRACO Power
View Data Sheet
In Stock: 3 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$7.00
10
$4.86
25
$4.75
100
$4.72
250
$4.66
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
8~32Vdc
Output Voltage:
6.5Vdc
Output Max Current:
0.5 Amps
Max Power:
3.25 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TSR 0.5-2465 SIP package step down non isolated DC/DC converter
Operating temperature: -40~+90°C
Low standby current
Excellent line/load regulation
Ideal drop-in replacement to LM78 linear regulators
Protections: short circuit / over temperature
TRACO Power 3 year warranty
TSR 0.5-2465
6.5Vdc 0.5A, Switching Regulator Non-Isolated SIP PackageManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
8~32Vdc
Output Voltage:
6.5Vdc
Output Max Current:
0.5 Amps
Max Power:
3.25 Watts
Known Country of Origin:
Taiwan
Features
In Stock: 3 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$7.00
10
$4.86
25
$4.75
100
$4.72
250
$4.66
REQUEST a QUOTE for higher qty discounts
