TSR 2-2433N

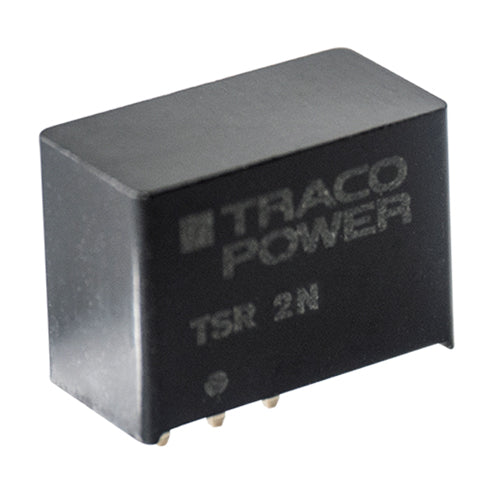

3.3Vdc, 2A SIP-3 Package POL DC/DC Converter, 3.3 Volts, 2 Amps, Input Voltage: 4.6-36VdcManufacturer: TRACO Power
View Data Sheet
In Stock: 9 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
4.6~36Vdc
Output Current:
2 Amps
Output Voltage:
3.3Vdc
Known Country of Origin:
Taiwan
Features
SIP3 package POL DC/DC converter
Input voltage range: 4.6~36Vdc
Operating temperature range: -40~+90°C
Non-isolated
Pin compatible with TO-220 linear regulators
MIL-STD-810F
Protections: short circuit (continuous) / undervoltage lockout
TRACO Power 3 year warranty
