Power Worth Searching For
TXLN 080-312M2

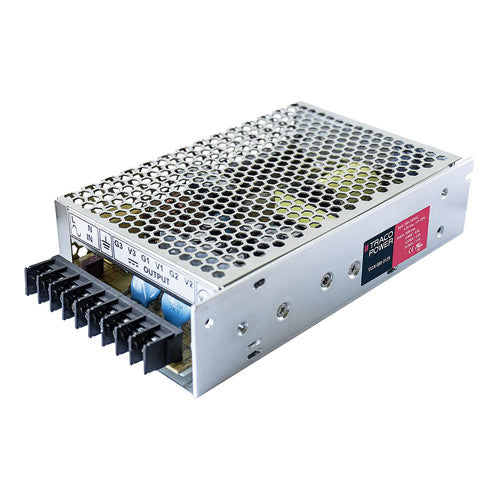

5V, 12V, -12V, Triple Output Power Supply Enclosed Type 5V 8A / 12V 4A / -12V 1AManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
88~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
8 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
4 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
1 Amps
Max Power:
80 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TXLN 080-313M3 enclosed type AC/DC power supply
AC input range: 88~264Vac
Operating temperature: -20~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Low leakage current ≤1000µA
LED indicator for power On
Protections: short circuit / overload / overvoltage
TRACO Power 3 year warranty
TXLN 080-312M2
5V, 12V, -12V, Triple Output Power Supply Enclosed Type 5V 8A / 12V 4A / -12V 1AManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
88~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
8 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
4 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
1 Amps
Max Power:
80 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TXLN 080-313M3 enclosed type AC/DC power supply
AC input range: 88~264Vac
Operating temperature: -20~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Low leakage current ≤1000µA
LED indicator for power On
Protections: short circuit / overload / overvoltage
TRACO Power 3 year warranty
