TXLN 080-313M3
5V, 15V, -15V, Triple Output Power Supply Enclosed Type 5V 8A / 15V 3.5A / -15V 1AManufacturer: TRACO Power
View Data Sheet
In Stock: 6 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
88~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
8 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
3.5 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
1 Amps
Max Power:
80 Watts
Known Country of Origin:
Taiwan
Features

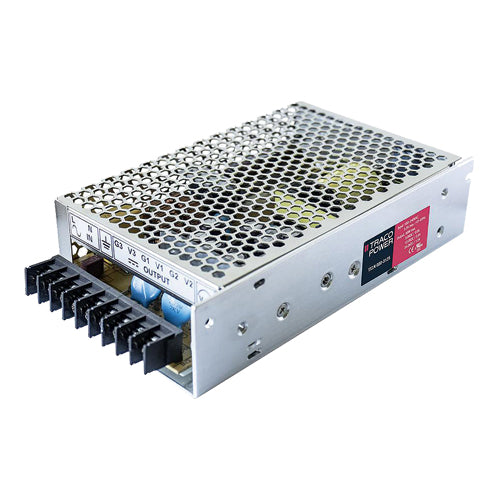

TRACO Power TXLN 080-3125 enclosed type AC/DC power supply
AC input range: 88~264Vac
Operating temperature: -20~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Low leakage current ≤1000µA
LED indicator for power On
Protections: short circuit / overload / overvoltage
TRACO Power 3 year warranty
