Power Worth Searching For
VCCR300-24

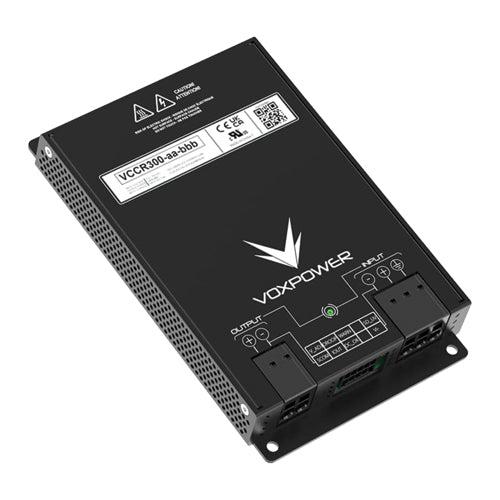

300 Watt, Low Profile, Ruggedized Industrial DC/DC Converter, 24V/12.5AManufacturer: Vox Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
33.6~160Vdc
Output Voltage:
24Vdc
Output Max Current:
12.5 Amps
Max Power:
300 Watts
Known Country of Origin:
Thailand
Features
Ruggedized 300 watt industrial DC/DC power supply
Wide input voltage range: 33.6~160Vdc
I/O isolation: 5400Vdc
Operating temperature range: -40~+70°C
Industrial safety certification: IEC 62368-1, UL 62368-1
Compliance to EN 50155 railway standard
Compliance to EN 61373 for shock & vibration
MIL-STD-810G
Protective conformal coating as standard
DC OK signal
High power density: 8.77W/cubic inch
Adjustable output voltage
High efficiency
Overvoltage category III
Parallel function
Current sharing capability
Regulated output
Protections: short circuit / over current / over voltage / over temperature
Vox Power 5 year warranty
