Power Worth Searching For
ACM36US15
15Vdc 2.4A, 15V Wall Plug-In Adaptor, Medical & ITE Certifications, Interchangeable AC PlugManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
2.4 Amps
Max Power:
36 Watts
Known Country of Origin:
Not specified
Features

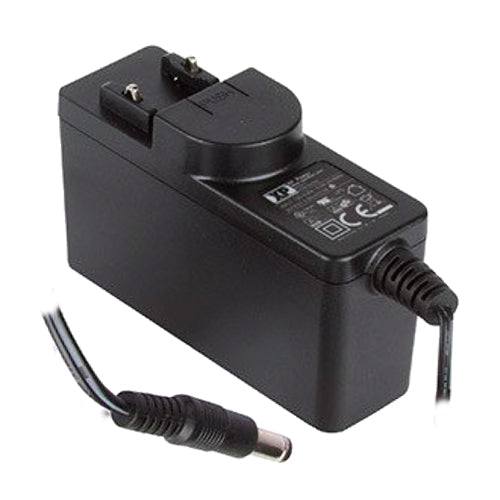

XP Power ACM36US15 wall plug-in power adaptor with interchangeable AC plugs
AC input range: 90~264Vac
Operating temperature: 0~+60°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Low leakage current ≤50µA
Industrial safety certifications: UL 62368-1 & UL 60950-1 listed
Class II
No load power consumption ≤0.075 Watts
Operation up to 5000m altitude
DC plug type: 2.5 x 5.5 x 11mm center positive
Protections: short circuit
XP Power 3 year warranty
ACM36US15
15Vdc 2.4A, 15V Wall Plug-In Adaptor, Medical & ITE Certifications, Interchangeable AC PlugManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
2.4 Amps
Max Power:
36 Watts
Known Country of Origin:
Not specified
Features
XP Power ACM36US15 wall plug-in power adaptor with interchangeable AC plugs
AC input range: 90~264Vac
Operating temperature: 0~+60°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Low leakage current ≤50µA
Industrial safety certifications: UL 62368-1 & UL 60950-1 listed
Class II
No load power consumption ≤0.075 Watts
Operation up to 5000m altitude
DC plug type: 2.5 x 5.5 x 11mm center positive
Protections: short circuit
XP Power 3 year warranty
