CCR420PS36

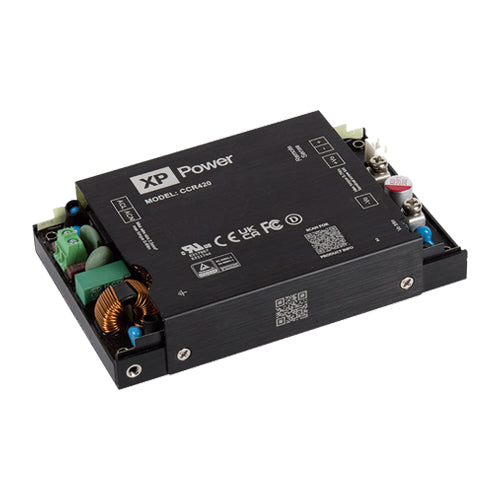

36Vdc 11.67A, Low Profile Medical AC/DC Power Supply, 36 Volts 11.67 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$250.60
5
$243.08
10
$235.57
25
$225.54
100
$210.51
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
11.67 Amps
Max Power:
420.12 Watts
Known Country of Origin:
China
Features
Compact, low profile medical and ITE AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -40~+80°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
BF rated
Low patient leakage current: <75µA
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class B conducted and radiated emissions
Built-in PFC
Built-in remote sense
1 inch (25.4 mm) profile
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
