Specifications
Input Voltage:
10~36Vdc
Output Voltage:
9Vdc
Output Max Current:
2.8 Amps
Max Power:
25 Watts
Known Country of Origin:
Not specified
Features

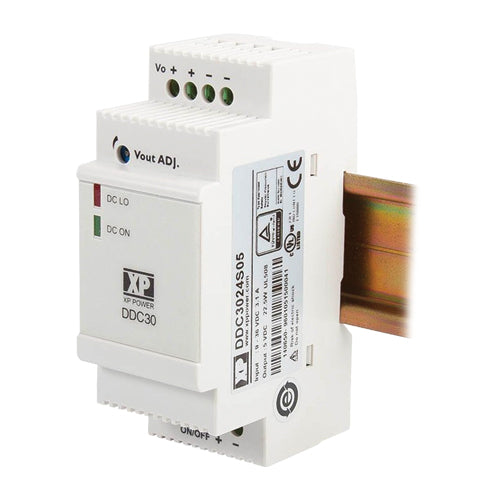

XP Power DDC3024S09 low profile DIN rail DC/DC converter
Ultra-Wide 4:1 input range
Operating temperature range: -40~+70°C
I/O isolation: 1500Vdc
Industrial safety certification: EN 62368-1, UL 62368-1
UL 508 listed
Remote On/Off
Output voltage trim function
No minimum load required
Fully regulated output
LED indicator for DC OK
Protections: overvoltage / overload / short circuit / undervoltage lockout
XP Power 3 year warranty
DDC3024S09
9Vdc 2.8A, 9V DIN Rail DC/DC Converter, 4:1 InputManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
10~36Vdc
Output Voltage:
9Vdc
Output Max Current:
2.8 Amps
Max Power:
25 Watts
Known Country of Origin:
Not specified
Features
XP Power DDC3024S09 low profile DIN rail DC/DC converter
Ultra-Wide 4:1 input range
Operating temperature range: -40~+70°C
I/O isolation: 1500Vdc
Industrial safety certification: EN 62368-1, UL 62368-1
UL 508 listed
Remote On/Off
Output voltage trim function
No minimum load required
Fully regulated output
LED indicator for DC OK
Protections: overvoltage / overload / short circuit / undervoltage lockout
XP Power 3 year warranty
