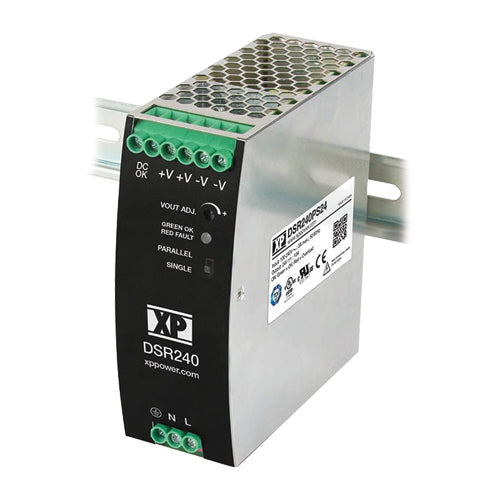

DSR240PS24 by XP Power

DSR240PS24

24Vdc 10A, 24V DIN Rail Power Supply, Peak Current, 24 Volts 10 Amps

Manufacturer: XP Power

View Data Sheet
End of Life

This part has been discontinued by the manufacturer and is no longer available from TRC Electronics. Full specifications and documentation remain below for reference.

Find a Replacement

Specifications

Input Voltage:

85~264Vac

Output Voltage:

24Vdc

Output Max Current:

10 Amps

Output Peak Current:

15 Amps

Max Power:

240 Watts

Known Country of Origin:

Not specified

Features

XP Power DSR240PS24 low profile DIN rail power supply

AC input range: 85~264Vac

Operating temperature range: -25~+70°C

Industrial safety certification: EN 62368-1, UL 60950-1

UL 508 listed

No minimum load required

Peak power 150% for 3 seconds

Built-in PFC

Low leakage current ≤1.0mA

Parallel function

High efficiency

Adjustable output voltage

LED indicator for DC OK

DC OK signal

Operating up to 5000m altitude

Protections: overvoltage / overload / short circuit

XP Power 3 year warranty
