ECE40US09-S
9Vdc 4.44A, 9Vdc Power Supply, Screw Terminal Blocks, 9 Volts 4.44 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
9Vdc
Output Max Current:
4.44 Amps
Output Peak Current:
5.77 Amps
Max Power:
40 Watts
Known Country of Origin:
Not specified
Features

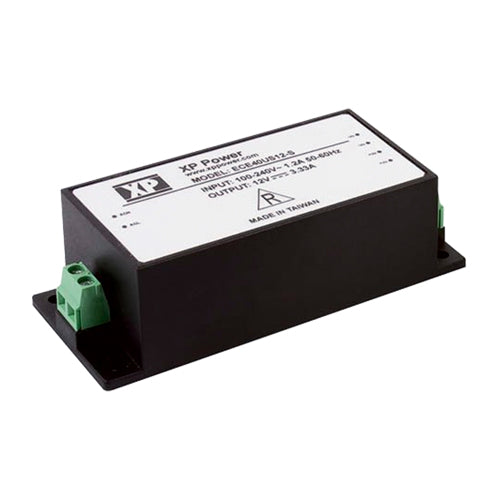

XP Power ECE40US09-S chassis AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -25~+70°C
Industrial safety certification: IEC 60950-1, IEC/EN 62368-1, UL 62368-1
Class II
Peak power
No load power consumption <0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
ECE40US09-S
9Vdc 4.44A, 9Vdc Power Supply, Screw Terminal Blocks, 9 Volts 4.44 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
9Vdc
Output Max Current:
4.44 Amps
Output Peak Current:
5.77 Amps
Max Power:
40 Watts
Known Country of Origin:
Not specified
Features
XP Power ECE40US09-S chassis AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -25~+70°C
Industrial safety certification: IEC 60950-1, IEC/EN 62368-1, UL 62368-1
Class II
Peak power
No load power consumption <0.3 watts
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
