ECF40US48
48Vdc 0.83A, Open Frame Power Supply, Medical & ITE Certifications, 48 Volts 0.83 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
48Vdc
Output Max Current:
0.83 Amps
Max Power:
40 Watts
Known Country of Origin:
Not specified
Features

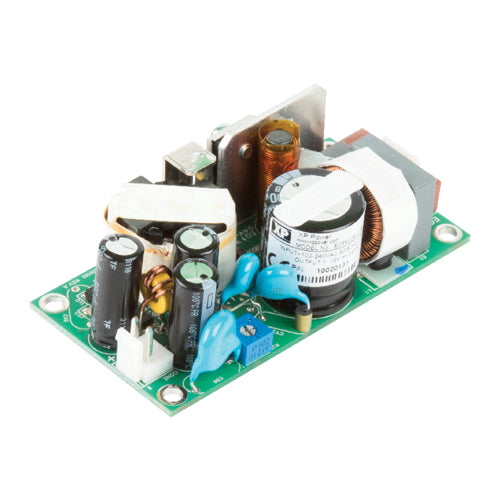

XP Power ECF40US48 low profile open frame medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -25~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 60950-1
Class I and class II prepared
Low earth leakage current 250µA max
No load power consumption <0.15 Watts
Adjustable output voltage
High efficiency
Operation up to 5000m altitude
High power density: 8.1W/cubic inch
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
