ECH450PS15
15Vdc 30A, Medical & ITE Power Supply, 3x5 Open Frame, 15 Volts 30 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
30 Amps
Max Power:
450 Watts
Known Country of Origin:
Not specified
Features

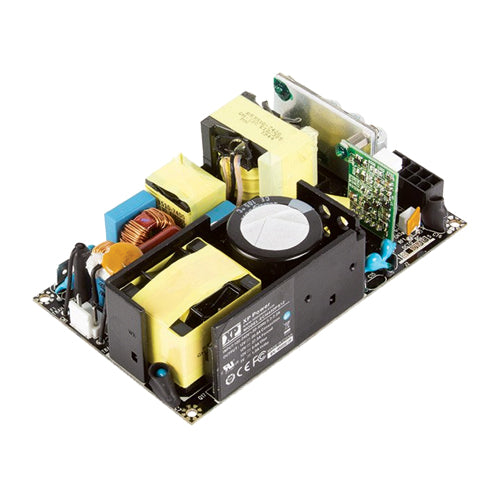

XP Power ECH450PS15 3x5 inches open frame power supply
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Convection cooled
Fanless power supply
Low earth leakage current ≤300µA
Built-in PFC
No load power consumption <0.21 Watts
Built-in 5V/1A standby output
Built-in 12V/0.6A auxiliary output
Built-in remote On/Off
Remote sense
High power density: 21W/cubic inch, Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
ECH450PS15
15Vdc 30A, Medical & ITE Power Supply, 3x5 Open Frame, 15 Volts 30 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
30 Amps
Max Power:
450 Watts
Known Country of Origin:
Not specified
Features
XP Power ECH450PS15 3x5 inches open frame power supply
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Convection cooled
Fanless power supply
Low earth leakage current ≤300µA
Built-in PFC
No load power consumption <0.21 Watts
Built-in 5V/1A standby output
Built-in 12V/0.6A auxiliary output
Built-in remote On/Off
Remote sense
High power density: 21W/cubic inch, Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
