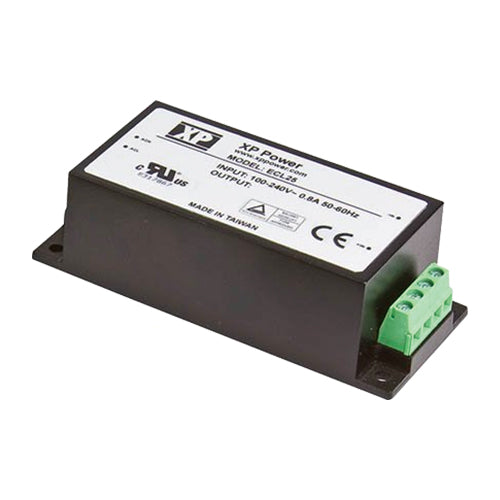

ECL25US12-S
12Vdc 2.1A, 12 Volt DC Power Supply, Peak Current, 12 Volts 2.1 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
2.1 Amps
Output Peak Current:
2.73 Amps
Max Power:
25 Watts
Known Country of Origin:
Not specified
Features
XP Power ECL25US12-S encapsulated chassis mount screw terminal power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class II
Peak power up to 130% for <30 sec
Reinforced I/O isolation 3000Vac
No load power consumption <0.3W
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
ECL25US12-S
12Vdc 2.1A, 12 Volt DC Power Supply, Peak Current, 12 Volts 2.1 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
2.1 Amps
Output Peak Current:
2.73 Amps
Max Power:
25 Watts
Known Country of Origin:
Not specified
Features
XP Power ECL25US12-S encapsulated chassis mount screw terminal power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Class II
Peak power up to 130% for <30 sec
Reinforced I/O isolation 3000Vac
No load power consumption <0.3W
Protections: overvoltage / overload / short circuit
XP Power 3 year warranty
Get Pricing and Lead Time for ECL25US12-S
Tell us the quantity you need and we will come back with minimum order quantity, factory lead time and pricing.
Your quote will include the minimum order quantity, the factory lead time, and pricing at the volumes you ask for.
Prefer to talk it through? Call 1-888-612-9514.
