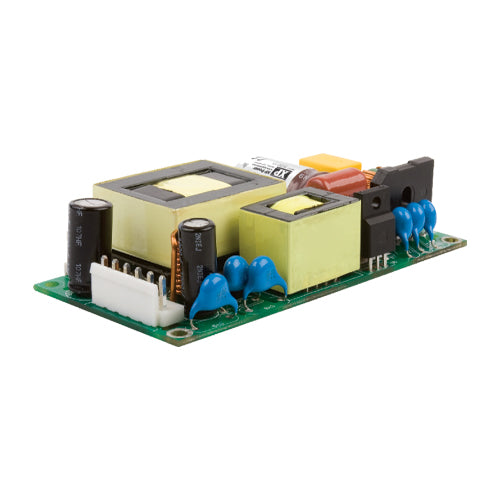

ECP180PS48
48Vdc 3.75A, Open Frame Power Supply, Medical & ITE Certifications, 48 Volts 3.75 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
3.75 Amps
Max Power:
180 Watts
Known Country of Origin:
Not specified
Features
XP Power ECP180PS48 2x4 inches open frame medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Built-in PFC
Class I and class II prepared
Low earth leakage current 230µA max
No load power consumption <0.5 Watts
High efficiency
Operation up to 5000m altitude
High power density: 22W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
ECP180PS48
48Vdc 3.75A, Open Frame Power Supply, Medical & ITE Certifications, 48 Volts 3.75 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
3.75 Amps
Max Power:
180 Watts
Known Country of Origin:
Not specified
Features
XP Power ECP180PS48 2x4 inches open frame medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Built-in PFC
Class I and class II prepared
Low earth leakage current 230µA max
No load power consumption <0.5 Watts
High efficiency
Operation up to 5000m altitude
High power density: 22W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
